This guide walks you through connecting Google Drive using an OAuth-enabled Google App. No paid Google Workspace account is needed anyone can follow these steps! If your organization uses Google Workspace and you’d prefer a Service Account setup instead, refer to this section.

​
Authorization

  1. Create a Google Cloud Project Visit https://console.cloud.google.com/projectcreate and create a new project.

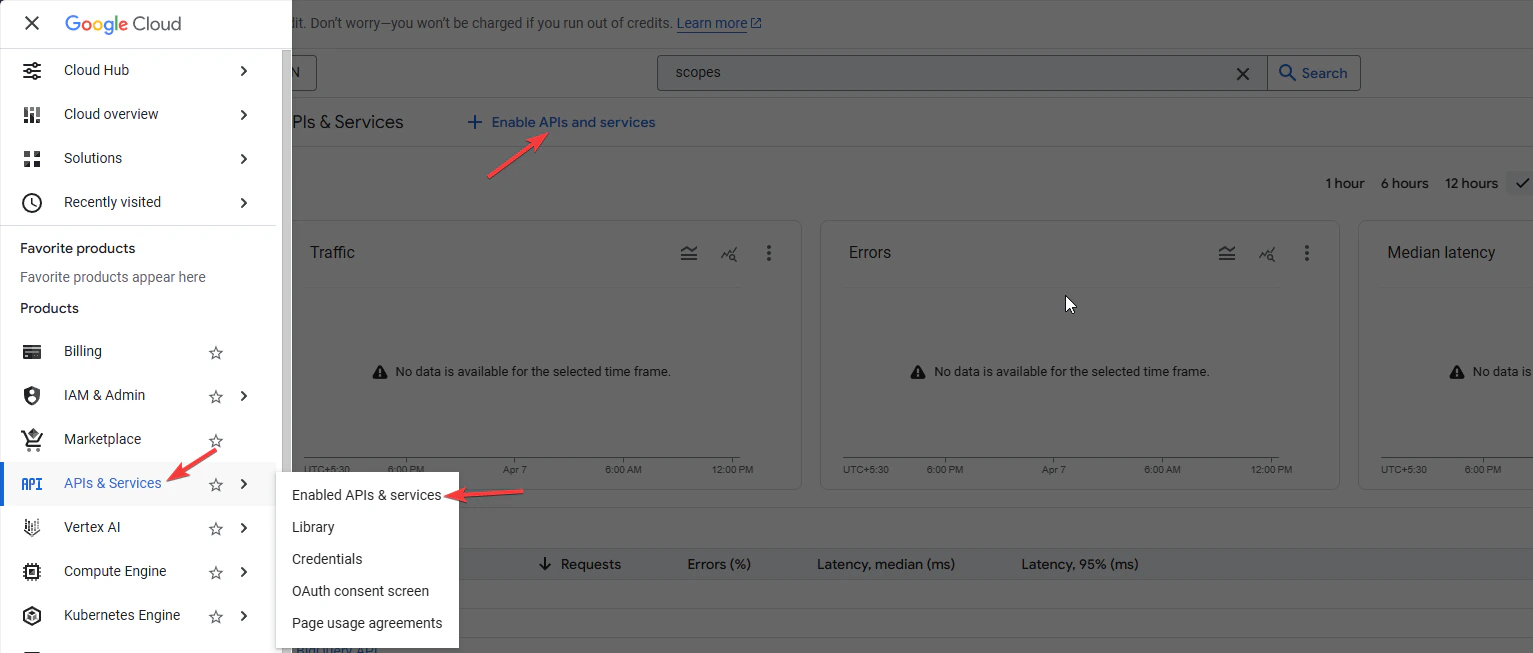

  2. Enable Google Drive API
    • On the left panel, open APIs & services
    • Go to Enabled APIs and services
    • On the top click +ENABLE APIS AND SERVICES
    • Search for Google Drive API and click ENABLE
    • Alternatively visit this link, select your project and enable the Google Drive API
  3. Enable Admin SDK API
    • Click on +ENABLE APIS AND SERVICES again.
    • Search for Admin SDK API and click ENABLE
    • Alternatively visit this link, select your project and enable the Admin SDK API
  4. Enable Google Sheets API
    • Click on +ENABLE APIS AND SERVICES again.
    • Search for Google Sheets API and click ENABLE
    • Alternatively visit this link, select your project and enable the Google Sheets API
  5. Enable Google Docs API
    • Click on +ENABLE APIS AND SERVICES again.
    • Search for Google Docs API and click ENABLE
    • Alternatively visit this link, select your project and enable the Google Docs API
      Arc Xu Ftu Hx RWK 3
  6. Set up OAuth consent screen
    • Under APIs & services, select the OAuth consent screen tab
    • If you don’t have a Google Organization select External for User Type
    • Call the app ASSIST AI (or whatever you want)
    • Provide the required support emails of your choice.
    • Click Save and Continue.

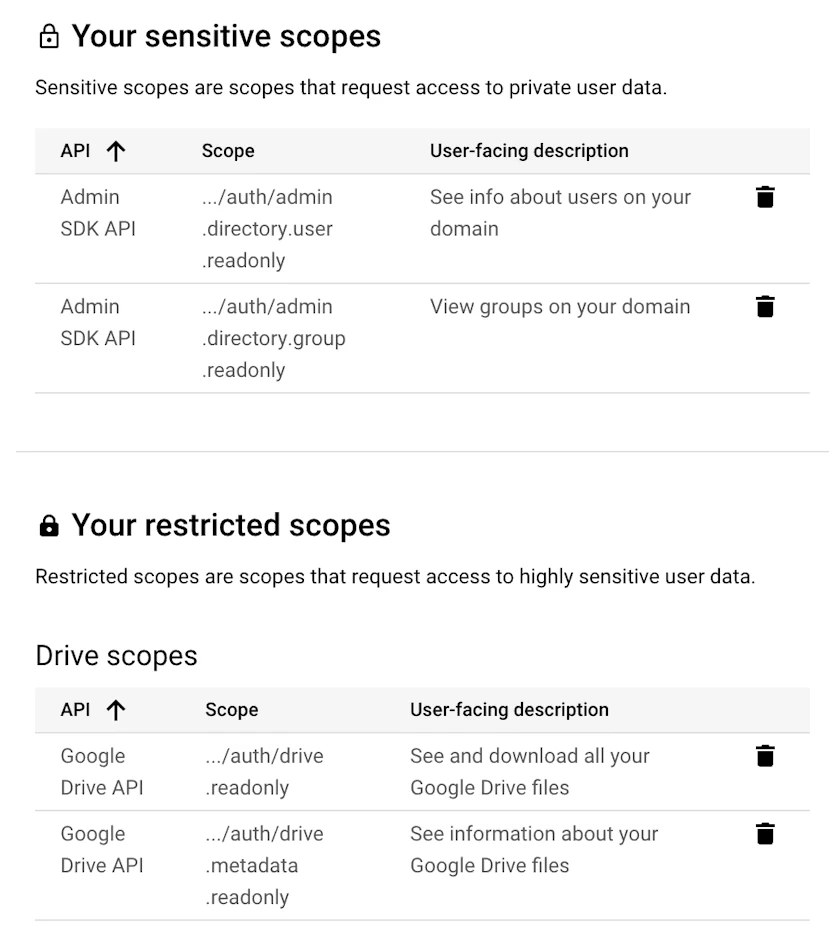

  7. Set up scopes
    • Add the scope .../auth/drive.readonly for Google Drive API
    • Add the scope .../auth/drive.metadata.readonly for Google Drive API
    • Add the scope .../auth/admin.directory.user.readonly for Admin SDK API
    • Add the scope .../auth/admin.directory.group.readonly for Admin SDK API
      New1
  8. Add Test Users
    • Add at least one test user email (only if you don’t have a Google Organization) — only these accounts will be permitted to run the OAuth flow and index documents.
    • Click Save and Continue, review your settings, then return to the dashboard.
  9. Create OAuth Credentials

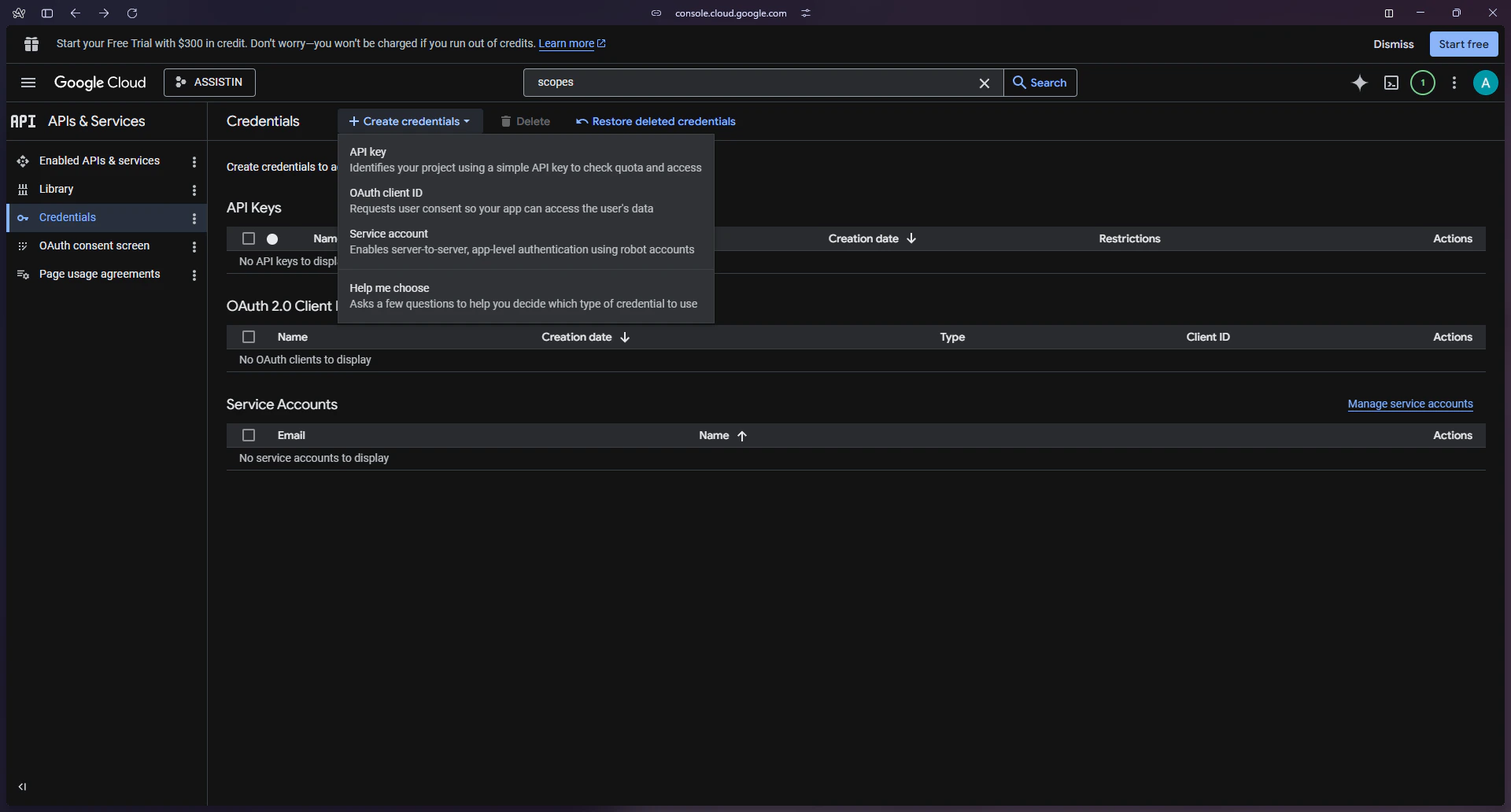

    • Go to the Credentials tab and select + Create Credentials → OAuth Client ID
      2 3
    • Choose Web Application and give it a name like AssistAIConnector.
    • Then configure the following:
      • Authorized JavaScript Origins
      • https://www.tryassist.in/forassist (ASSIST AI Cloud)
    • Authorized Redirect URIs:
      • https://www.tryassist.in/admin/connectors/google-drive/auth/callback
        for ASSIST AI cloud
Click Create, then download the credentials JSON file from the Client Secret panel — you’ll need it in the next step.

​
Indexing

Navigate to the Admin Panel and select the Google Drive connector. Create a new credential and upload the JSON key downloaded in the previous step. Click Authenticate with Google Drive and sign in with the account you’d like to use for indexing. Once complete, select the newly created credential and click Continue to finish configuring the connector.
If you plan on using permission syncing for this connector, the account performing the OAuth flow must have an Admin role in the Google Workspace that has access to the following:
  • Admin console privileges -> Services -> Drive and Docs -> Settings
  • Admin API privileges -> Users -> Read
  • Admin API privileges -> Groups -> Read
  • Admin API privileges -> Organization Units -> Read
This can be set by an admin in the admin panel of the Google Workspace under Account > Admin roles.
